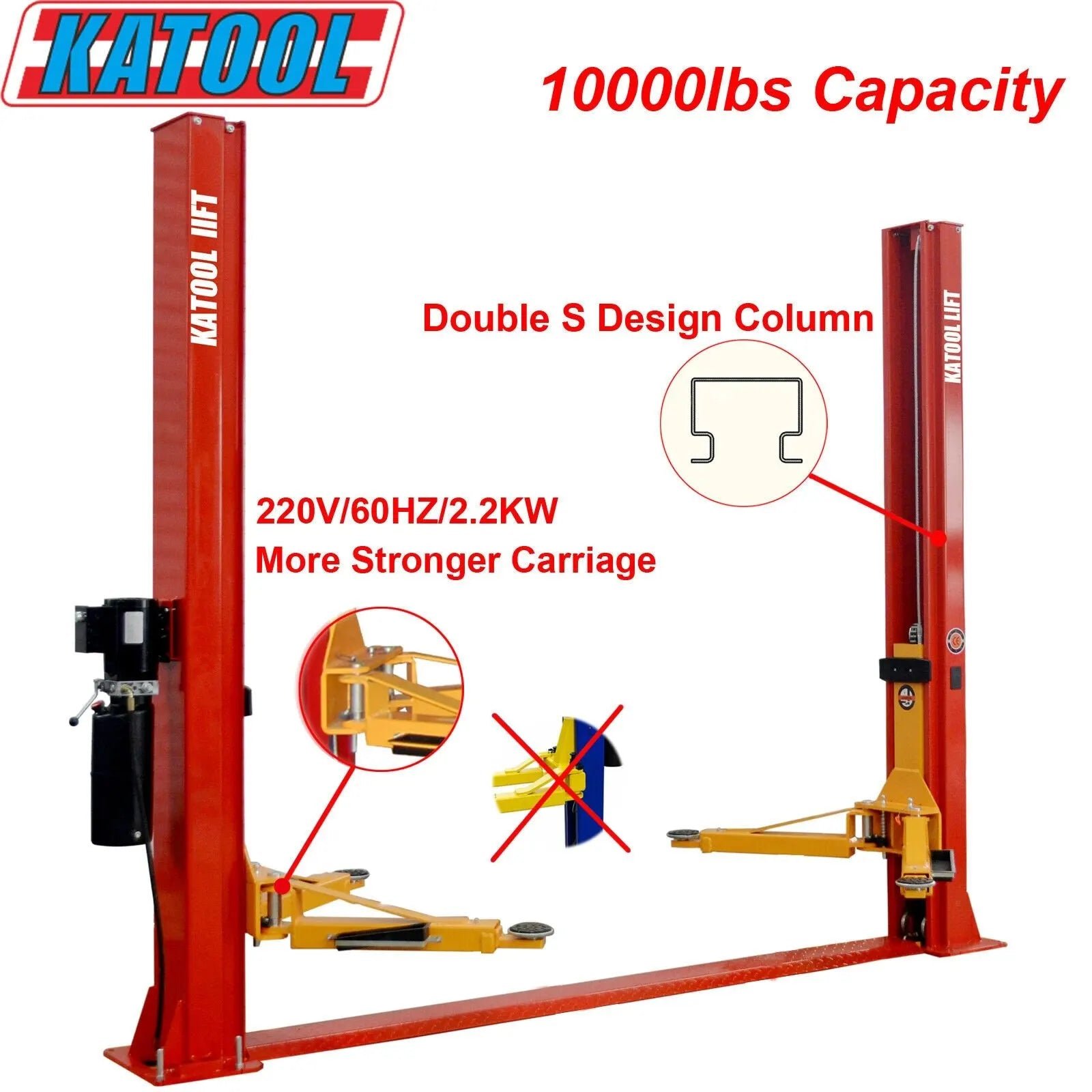

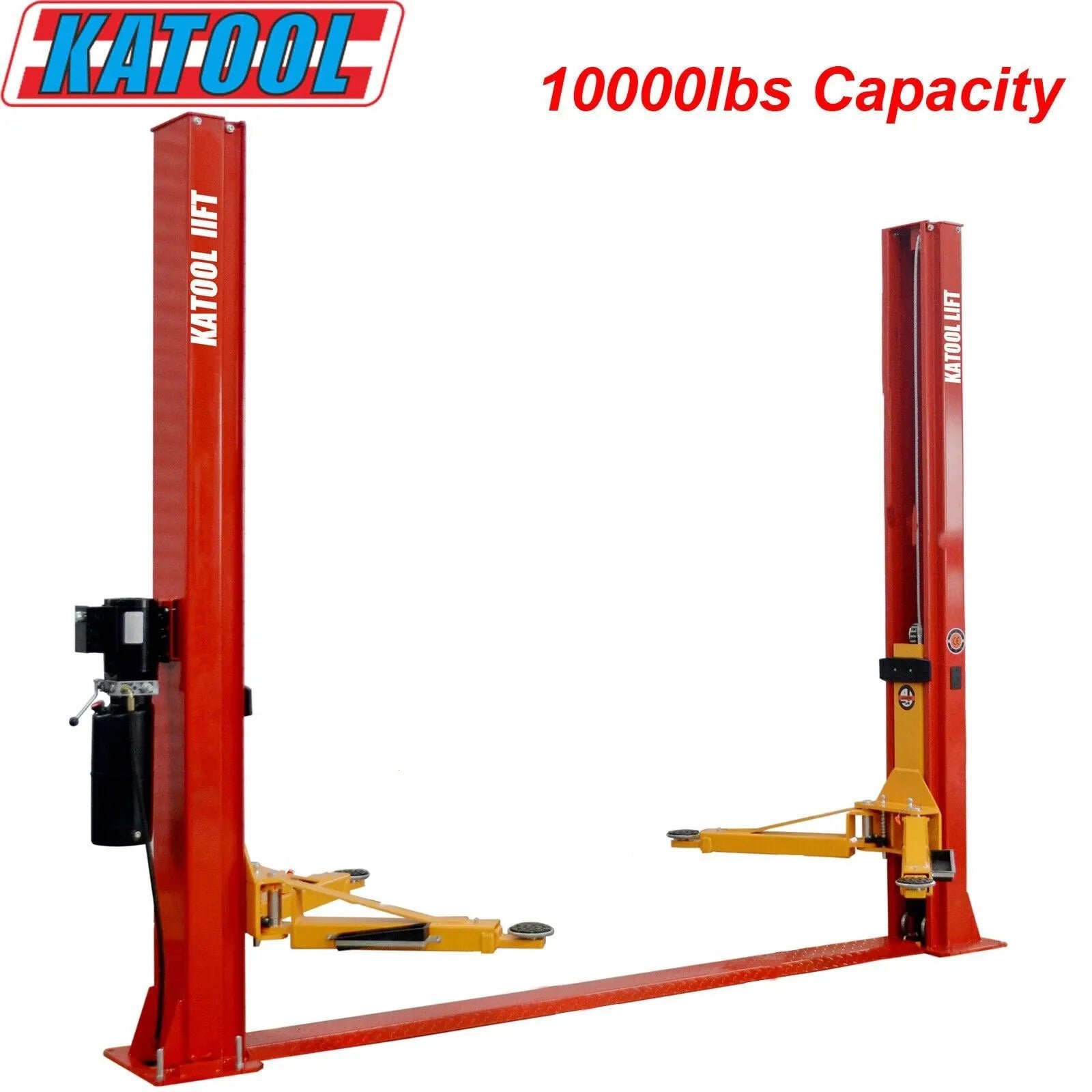

KT-H100 Two Post Vehicle Lift 10,000lbs

Concrete thickness must be at least 5.9” (150 MM) with a 3000 PSI rating. Failure to install this lift on the proper concrete, could result in serious injury or death! It is the customer’s responsibility to verify concrete thickness and strength before purchase and installation.   Lifting Capacity 10000lbs/4500KG Max. Lifting Height 70.75″/1800mm Min. Height 4.25″/110mm Height Overall 110.25″/2800mm Width Overall 142.25″/3614mm Outside Column 128″/3250mm Inside Column 110.25″/2800mm Dirve-Thru Clearance 94.5″/2400mm Front Arm Reach (Min) 30.75″/780mm (2 stages) Front Arm Reach (Max) 50.5″/1280mm (2 stages) Rear Arm Reach (Min) 30.75″/780mm (2 stages) Rear Arm Reach (Max) 50.5″/1280mm (2 stages) Motor 220VAC/60HZ/1PH/2.2KW Net Weight 1256lbs/570KG
